EA-SX

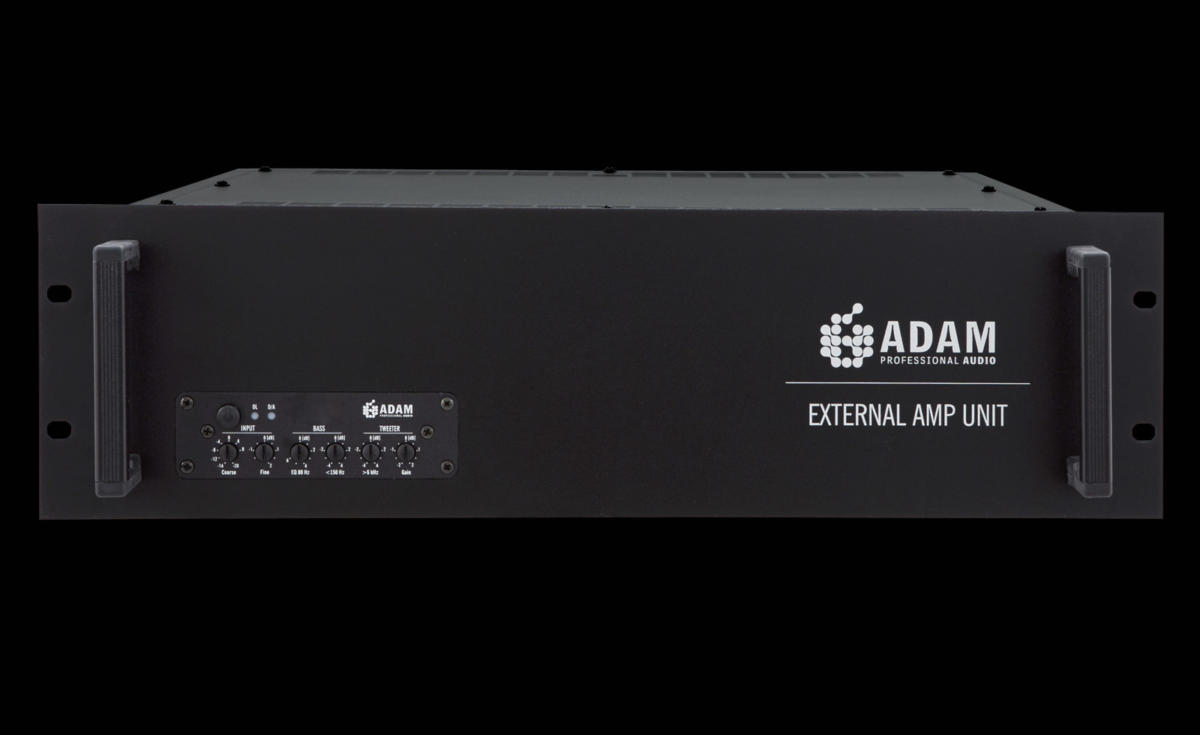

External Amp Unit
ADAM EA-SX

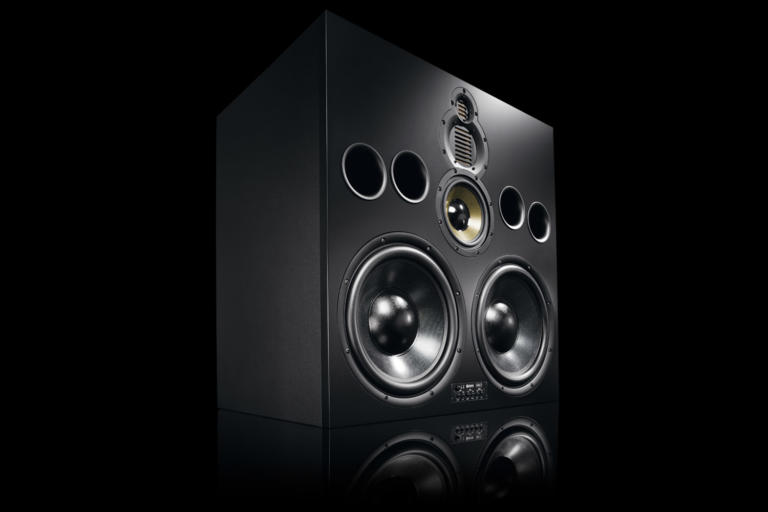

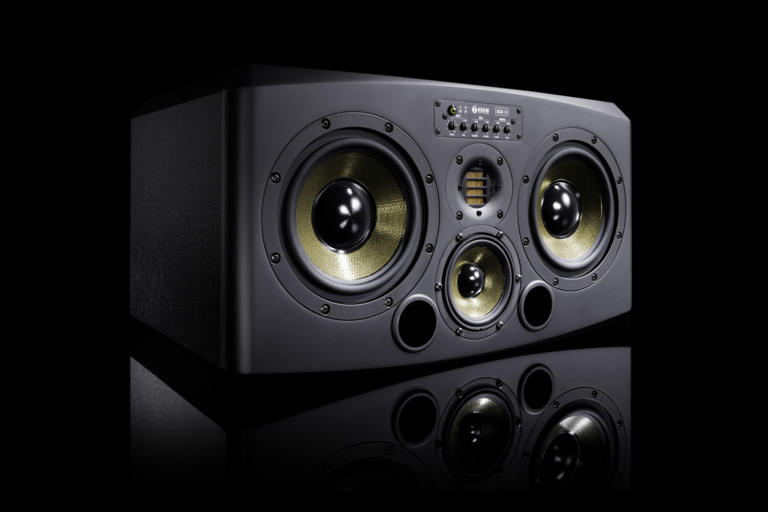

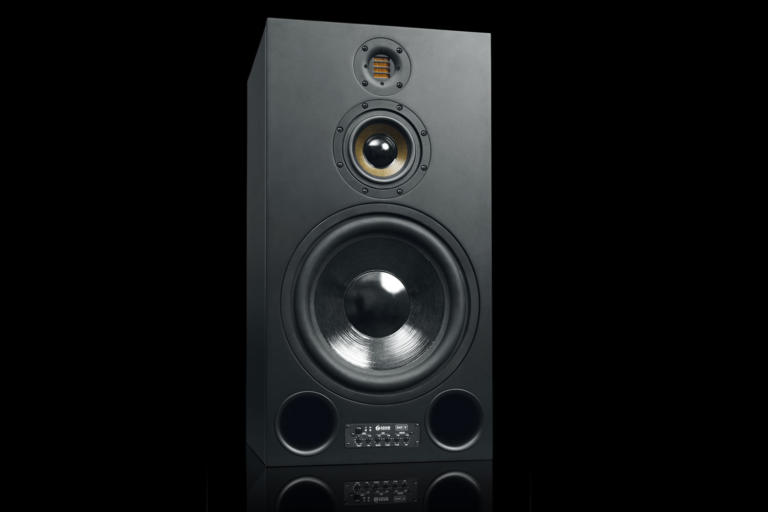

We offer the option of an external amp unit for the models S2X, S3X-H, S3X-V, S4X-H, S4X-V, S5X-H and S5X-V in order to make flush mounting of these monitors easier. Connecting the mounted SX monitors becomes very convenient and space-saving thanks to recessed Speakon connectors on the rear of the monitors.
The respective external amp units and their control panels are mounted in a 19“ (3U) rack enclosure. The electronic circuitry and the controls of these units are the same that can be found in all base models of the SX monitor range with fitted amplification.
To connect the monitors to the external amp unit you must use the ADAM Audio ready-made Speakon cables that can be ordered in either 5 or 10 meter lengths.
Fitting for S2X, S3X, S4X and S5X
SX control panel
19" (3U) rack enclosure
Gallery

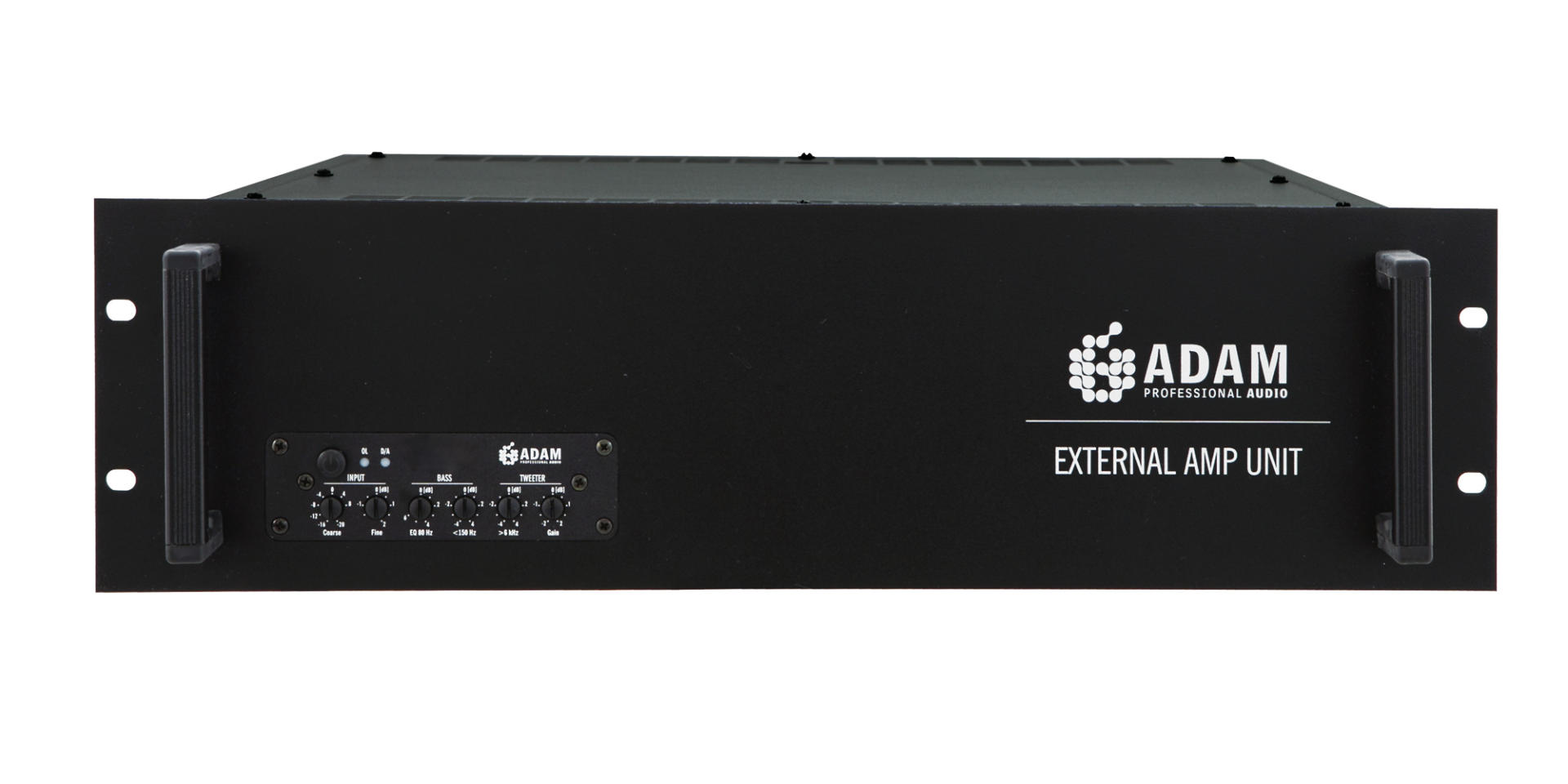

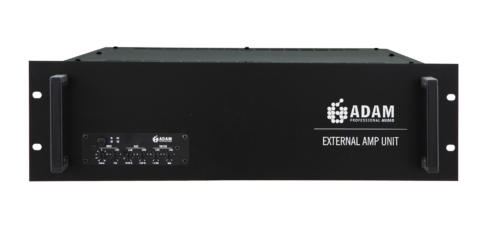

ADAM Audio External Amplifier EA SX - Front

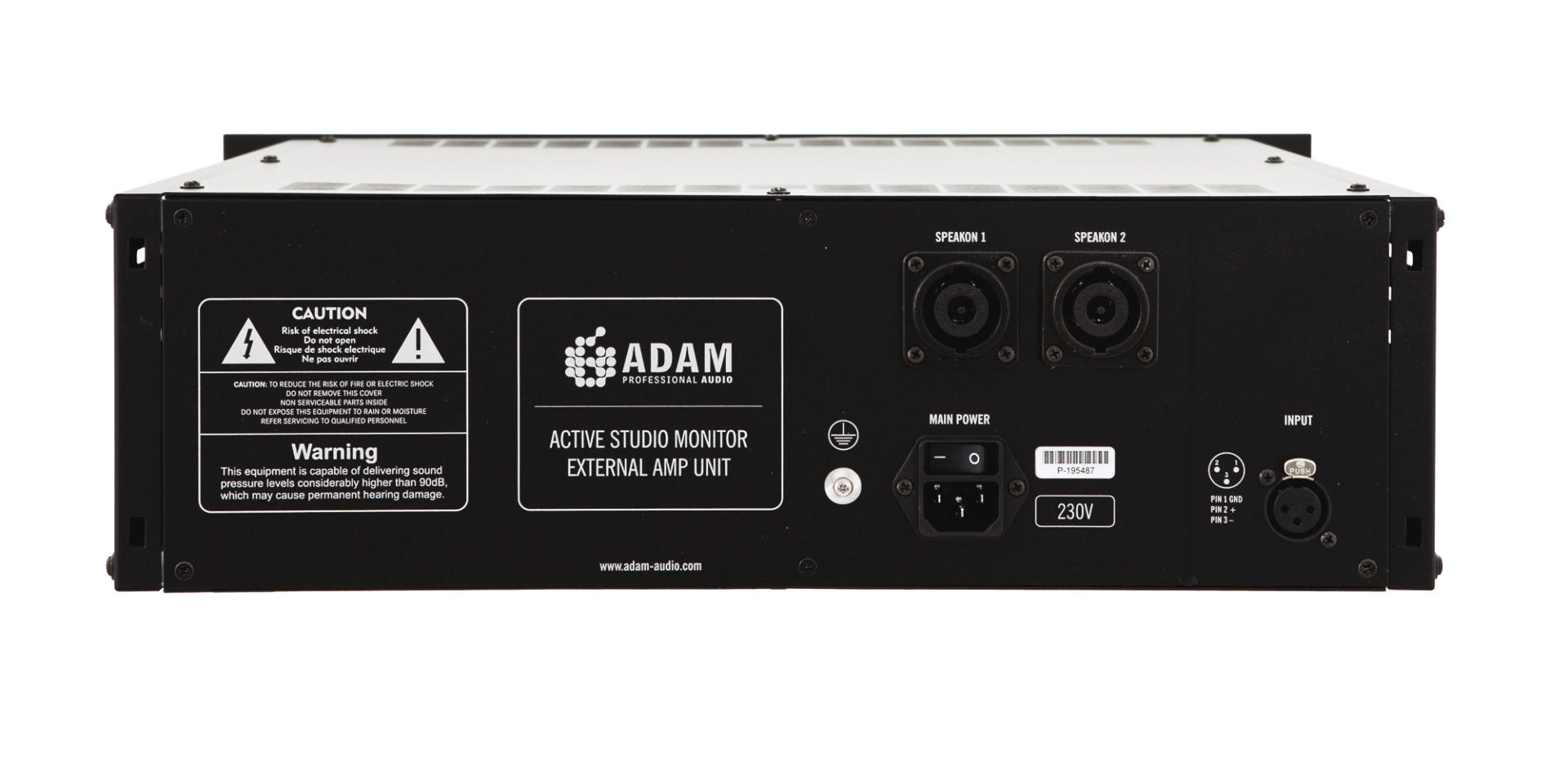

ADAM Audio External Amplifier EA SX - Back
The SX Panel
Features & Benefits
Product Feature | Benefit to the customer |
|---|---|
| An external amp unit makes flush mounting of selected SX monitors much easier | Space saving and improved acoustics through “infinte” acoustic baffle |
| 19“ (3U) rack enclosure | The EA-SX fits in every standard 19″ rack |
| SX Panel with sophisticated controls | Allows optimal adjustments for acoustically difficult environments or individual preferences |
Technical Data
Control Panel
| Input Sensitivity (coarse) | -20 to +8 dB (4 dB steps) |
| Input Sensitivity (fine) | -1.5 to +2 dB (0.5 dB steps) |
| EQ 80 Hz | 0 to +6 dB (1 dB steps) |
| High Shelf EQ > 6 kHz | ±4 dB (1 dB steps) |
| Low Shelf EQ < 150 Hz | ±4 dB (1 dB steps) |
| Tweeter Gain | ±2 dB (0.5 dB steps) |
General Data
| Fitting for | S2X, S3X, S4X and S5X |
| Panel | Front |
| Height x Width x Depth | ??? |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Speakon cable, manual |
