GTC77Grand Theatre Components
Archived Product
Gallery

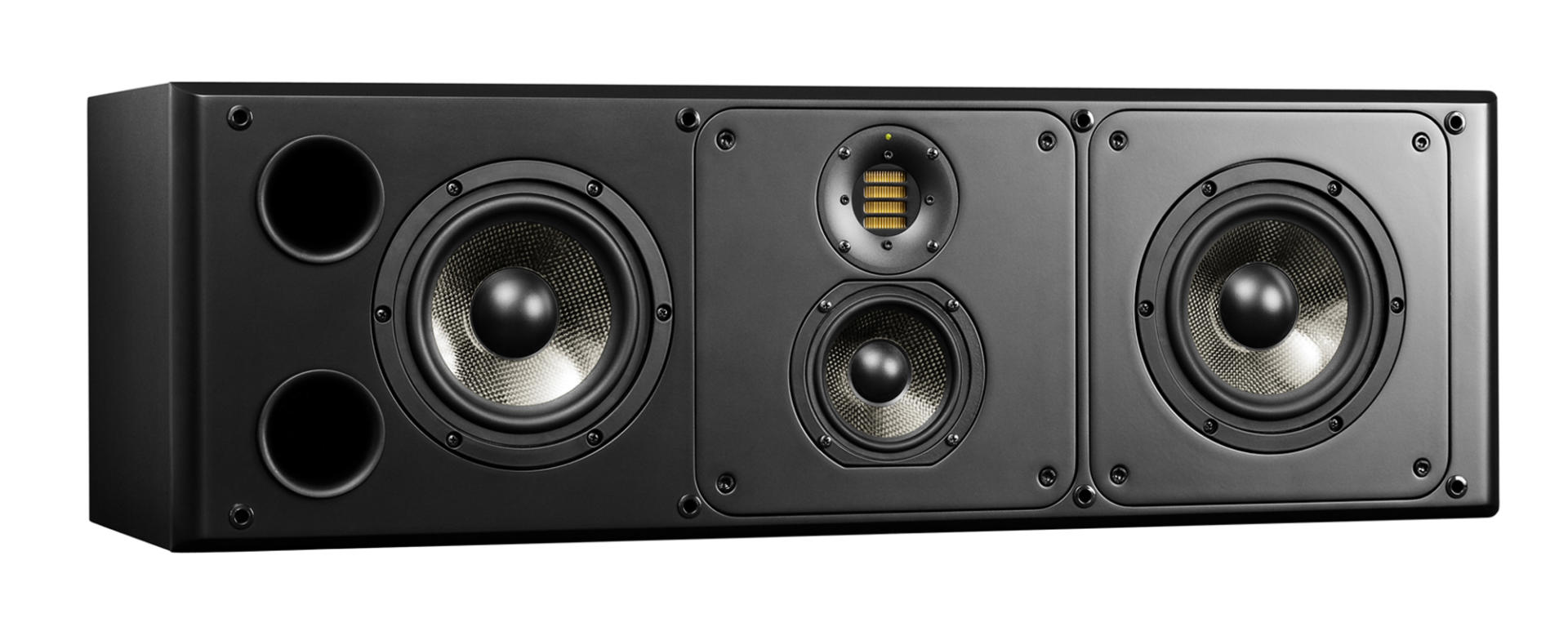

ADAM Audio GTC77 Home Theatre Speaker - Horizontal

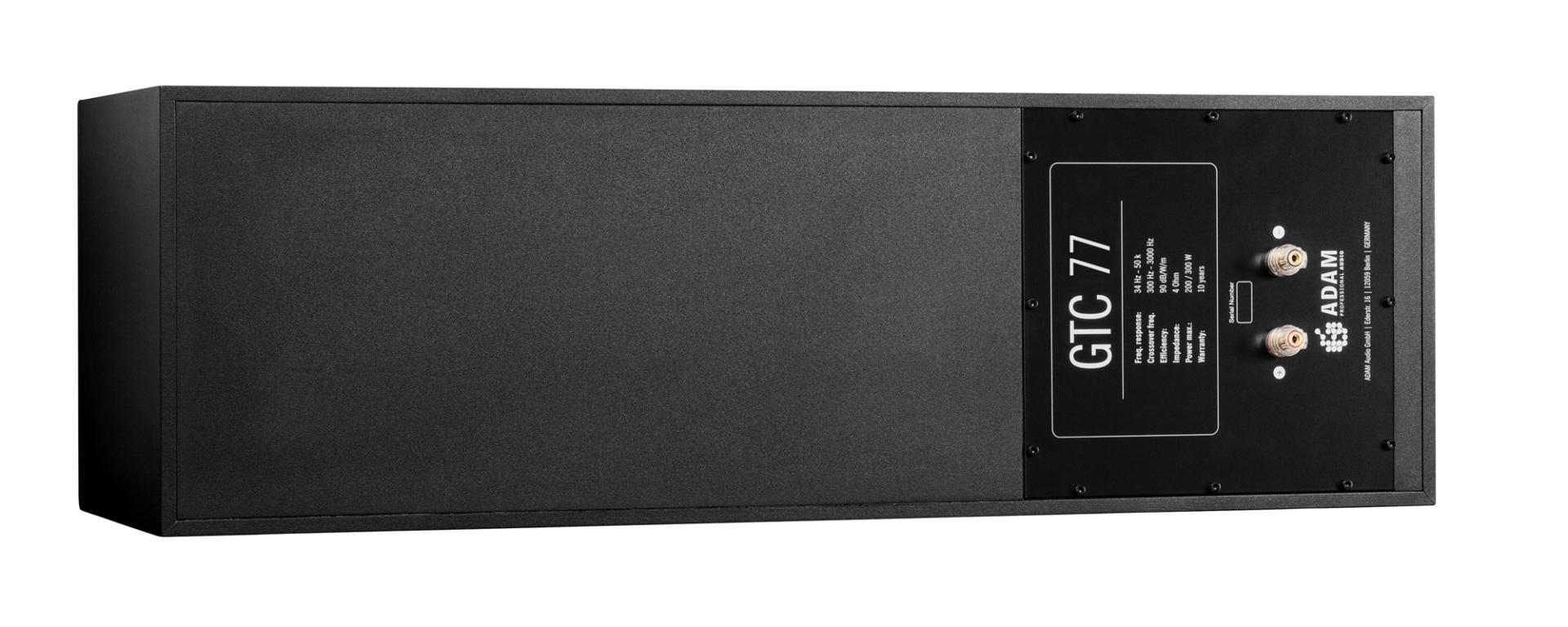

ADAM Audio GTC77 Home Theatre Speaker - Backside

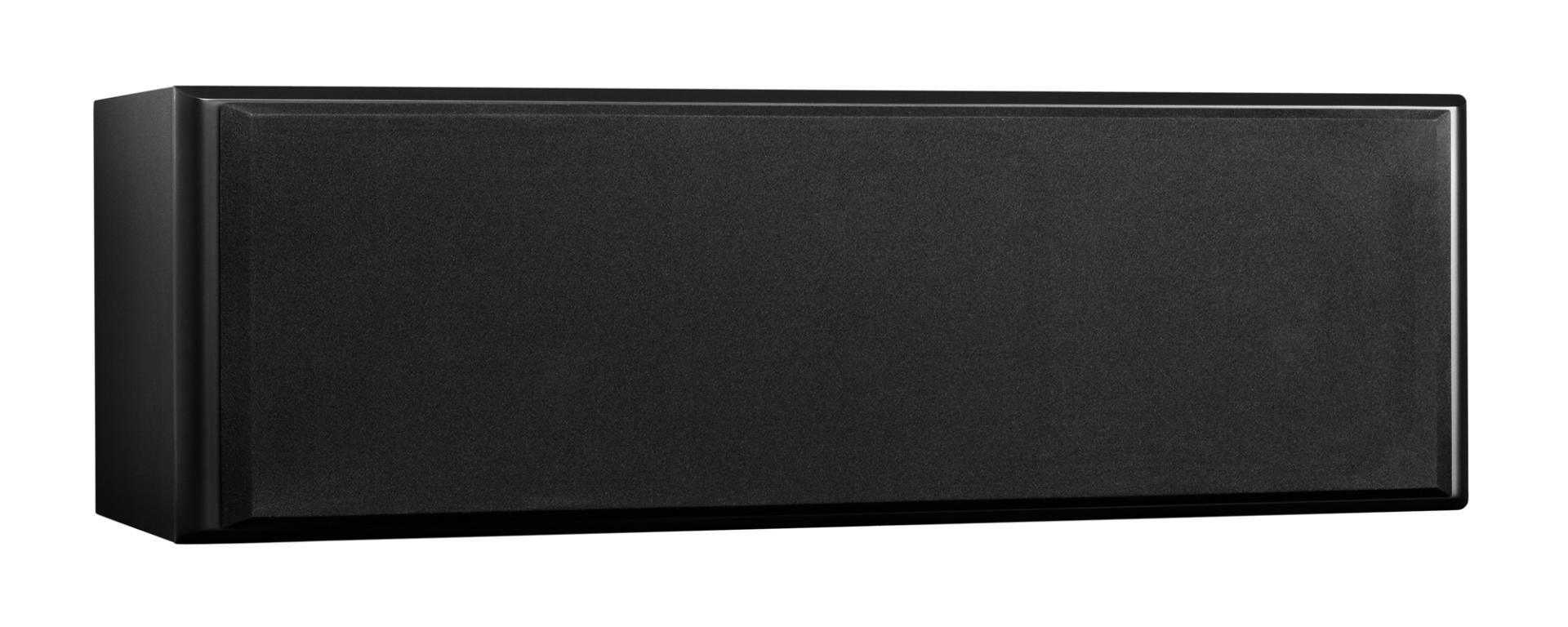

ADAM Audio GTC77 Home Theatre Speaker - With Hood

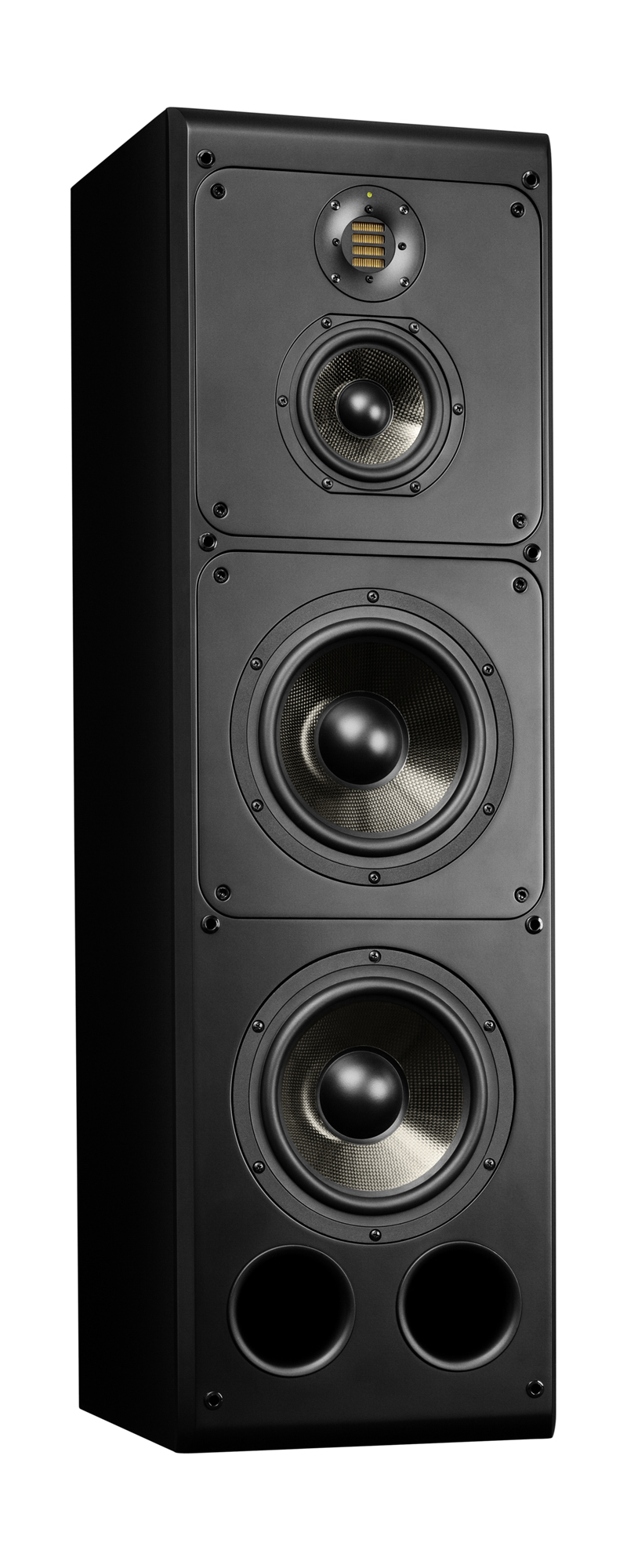

ADAM Audio GTC77 Home Theatre Speaker - Vertical
Technical Data
Woofer
| Number | 2 |
| Basket Ø | 7" (175 mm) |
| Voice Coil Ø | 1.5" (38 mm) |
| Cone Material | Carbon/Rohacell/Glass Fiber |
Midrange
| Number | 1 |
| Basket Ø | 4" (107 mm) |
| Voice Coil Ø | 1" (25 mm) |
| Cone Material | Carbon/Rohacell/Glass Fiber |
Tweeter
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
Input Connectors
| Analog | Banana |
| Location | Rear |
General Data
| Power Handling | 150 W / 230 W |
| Efficiency | ≥88 dB / W / m |
| Midrange / tweeter unit | Rotatable, changeable with woofer unit |
| Impedance | 4 Ohm |
| Frequency Response | 38 Hz - 50 kHz |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m | ≥110 dB |
| Max. SPL per pair at 1 m | ≥118 dB |
| Crossover Frequencies | 300 / 3200 Hz |
| Weight | 45.4 lb (20.6 kg) |
| Height x Width x Depth | 32" (810 mm) x 10" (260 mm) x 12.5" (317 mm) |
| Warranty | 10 years |
| Delivery Contents | Manual |
