S5X-H
Main Monitor

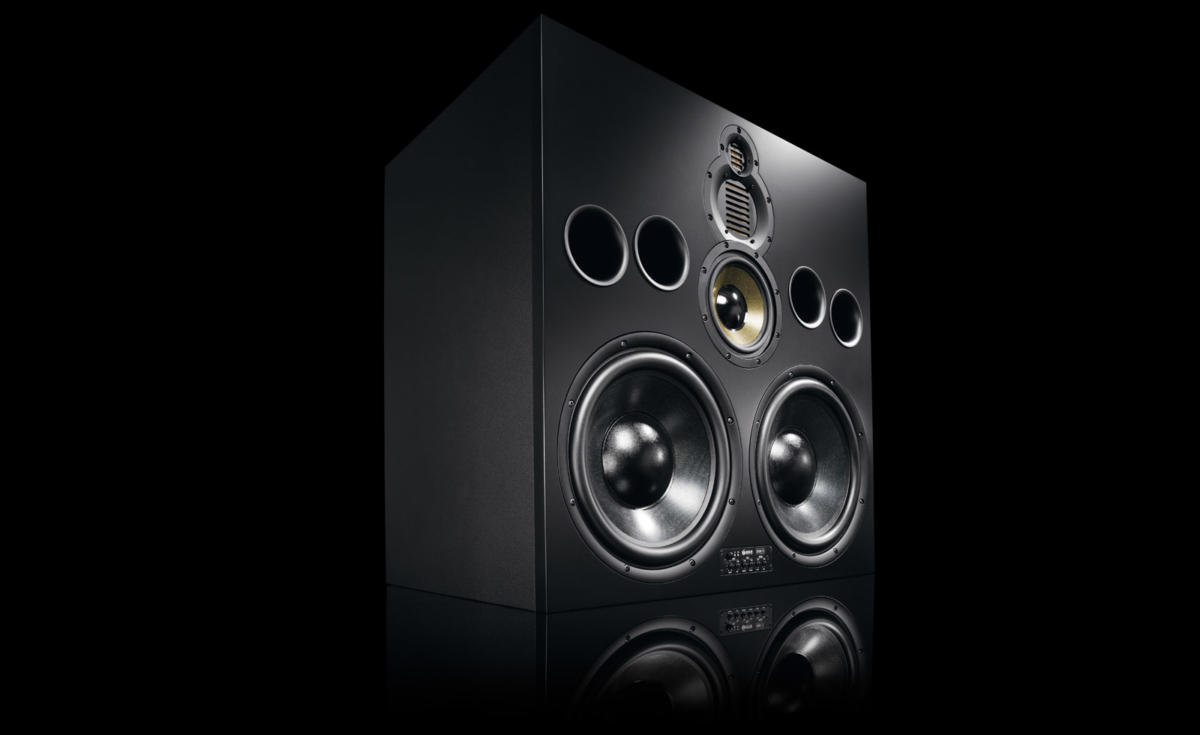

ADAM Audio S5X-H
ADAM Audio’s main monitors were especially developed for larger studios and control rooms, where exceptional high sound pressure levels are required in addition to sonic excellence. The S5X-H and S5X-V combine ADAM Audio innovations in the field of transducer and amplifier technology with higher volume and more prominent dynamics. Maximum precision is still the goal of all our efforts at ADAM, not the commonly expected and produced but often disproportional bass performance.
High-end main monitors
In addition, special emphasis was put on the control options in order to always accurately adapt the monitors to different acoustic situations. The two model 5s of the SX-Series also feature the SX-control panel that stands out for both the variety and accuracy of its control options offered. Therewith a maximum of control and the precise reproducibility of settings is ensured.
eXceptional: The X-ART midrange driver
An exclusive feature to be found in all main monitors is the use of the proprietary X-ART midrange speaker. These transducers transfer the clarity of the X-ART technology from the treble range into the crucial musical midrange. The horizontal and vertical versions accommodate different installation requirements. Due to their similar sound characteristics they can be easily combined in larger multi-channel applications.
S5X-H
The S5X-H transfers the basic sonic virtues of the X-ART technology and Hexacone drivers into a much higher dynamic range. It is equipped with a large diaphragm area (two 12″ woofers, one 7.5″ bass/mid woofer with HexaCone drivers, one X-ART midrange driver and one X-ART tweeter). That, coupled with five powerful amplifiers, allows the S5X-H to provide for impressive walls of sound that convey the powerful, completely effortless-sounding dynamic peaks with a clean and detailed tonal depth in the control room. The ability of the X-ART technology in particular to handle dynamic peaks without audible limiting or dazzling and transform these into sound pressure, is also impressive.
Optional: External Amplifier Unit EA-SX
For the models S2X, S3X, S4X and S5X we offer the option of an external amp unit in order to make flush mounting of these monitors easier.
German Handmade X-ART Tweeter & X-ART Midrange
2 x 12“ and 1 x 7.5" Woofer (HexaCone)
Amp. Power RMS / Music: 1750 W / 2450 W
Frequency Response: 24Hz - 50 kHz
Max. SPL per pair at 1 m: ≥131 dB
Gallery

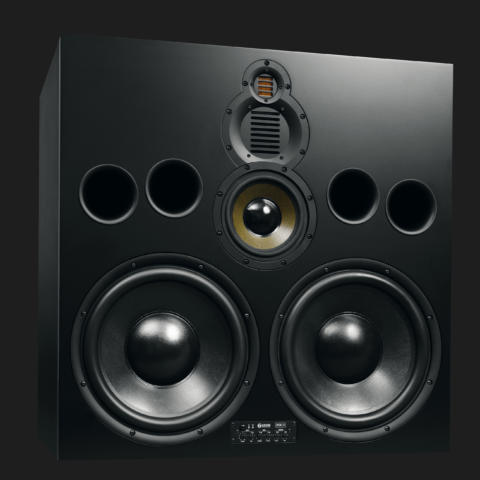

This is the front view.
The SX Panel.
Press Reviews
Features & Benefits
Product Feature | Benefit to the customer |
|---|---|
| X-ART tweeter, handmade in Berlin |
|
| The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane | Direct, fast response in the high-range even with complex transients |
| Ultra-light but extremely dimensionally stable woofer material (HexaCone) | Excellent transient response even at high sound levels without breakup of the diaphragm |
| Horizontal 4-way system with 2 x 12" woofers and 1 x 7.5” midrange | Very high resolution of the stereo image and extremely wide stereo base |
| Spacious bass reflex ports on the front |
|
| Highly efficient PWM amplifiers | Low-distortion amplification at both low and high volume levels |
| Linear frequency response of 24 Hz to 50 kHz | Unbiased reproduction in a wide frequency band |
| Maximum peak sound pressure per pair in 1 m ≥ 131 dB | Powerful, compression-free sound reproduction even at very high sound levels |
| Room acoustic adjustments via the SX Panel | Allows optimal adaptation to acoustically difficult listening environments or individual preferences |
| Analog XLR input | Optimized for balanced line signals |
| Directional sound radiation in vertical plane | Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc. |
| 2 years warranty with optional extension to 3 years with the registration of the product | Full repair service if required for 5 years |
Technical Data
Woofer
| Number | 2 |
| Basket Ø | 12" (305 mm) |
| Voice Coil Ø | 3" (75 mm) |
| Cone Material | HexaCone |
Midrange (cone)
| Number | 1 |
| Basket Ø | 7.5" (186 mm) |
| Voice Coil Ø | 2" (50 mm) |
| Cone Material | HexaCone |
Midrange
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 26 inch² (16800 mm²) |
| Equiv. Diaphragm Ø | 5.5" (146 mm) |
| Velocity Transform Ratio | 3.5:1 |
| Diaphragm Weight | 0.7 g |
Tweeter
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
Built-in Amplifiers
| Woofer | 2 |
| Type | PWM |
| Amp. Power RMS / Music | 500 W / 700 W |
| Midrange (cone) | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 250 W / 350 W |
| Midrange | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 250 W / 350 W |
| Tweeter | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 250 W / 350 W |
Control Panel
| Input Sensitivity (coarse) | -20 to +8 dB (4 dB steps) |
| Input Sensitivity (fine) | -1.5 to +2 dB (0.5 dB steps) |
| EQ 80 Hz | 0 to +6 dB (1 dB steps) |
| High Shelf EQ > 6 kHz | ±4 dB (1 dB steps) |
| Low Shelf EQ < 150 Hz | ±4 dB (1 dB steps) |
| Tweeter Gain | ±2 dB (0.5 dB steps) |
Input Connectors
| Analog | XLR |
| Digital (optional) | AES/EBU / SPDIF / word clock |
General Data
| Frequency Response | 24 Hz - 50 kHz |
| THD 90 dB / 1 m > 100 Hz | ≤0.5 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m | ≥121 dB |
| Max. SPL per pair at 1 m | ≥131 dB |
| Crossover Frequencies | 200 / 800 / 4000 Hz |
| Input Impedance | 10 kOhm |
| Weight | 139.8 lb (63,4 kg) |
| Magnetically Shielded | No |
| Height x Width x Depth | 27.5" (700 mm) x 27.5" (700 mm) x 18.5" (473 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, manual |
